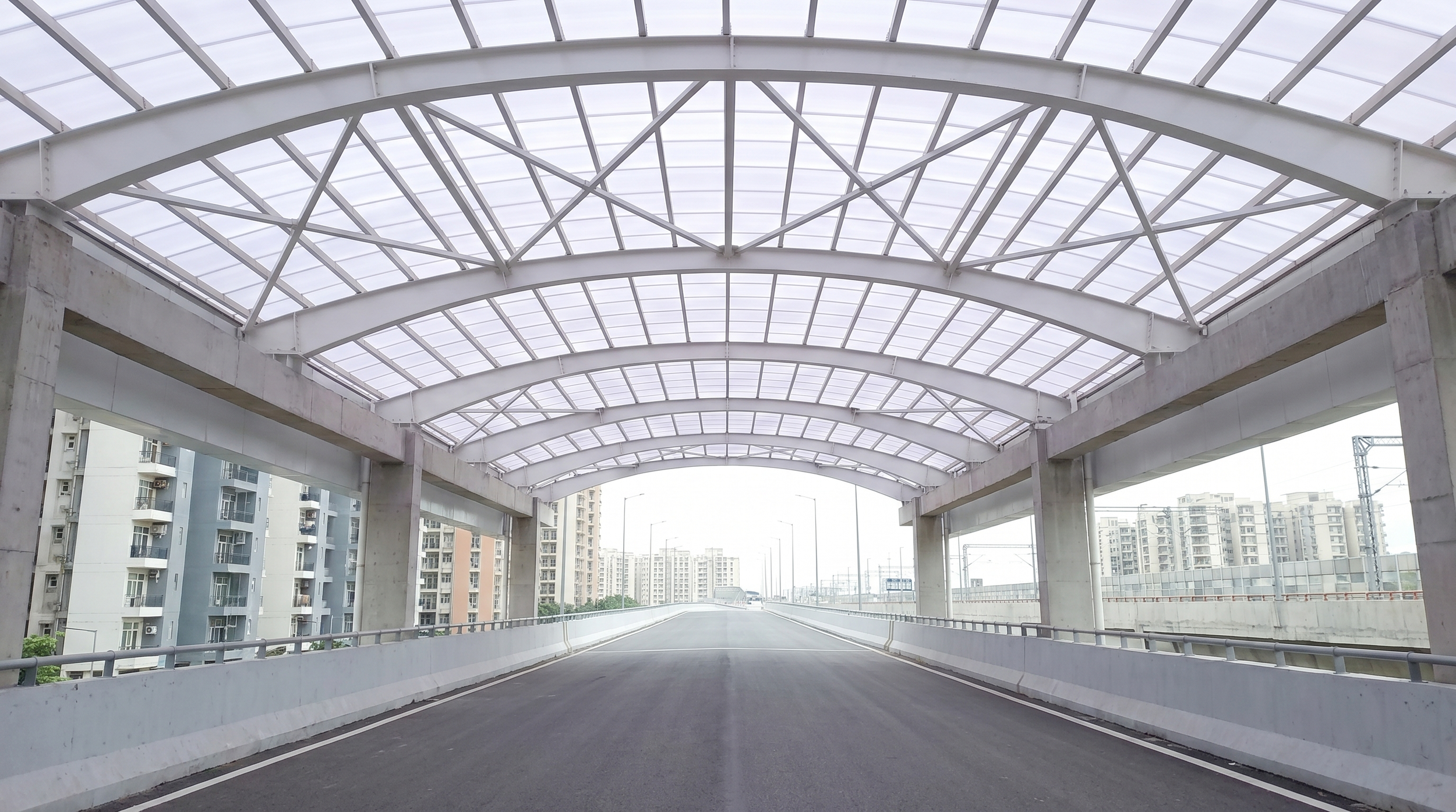

Ashram Chowk Underpass.

FIG. 01 · DelhiMulticell 16mm Opal

Area6,755 m²

ProductMulticell 16mm Opal

Year2023

SectorUrban infrastructure · PWD Delhi

LocationDelhi

Area: 6,755 m²
System: Multicell 16mm Opal
Location: Delhi
Client: PWD Delhi
Year: 2023

The challenge

The Ashram Chowk underpass carries tens of thousands of vehicles and pedestrians daily. The existing structure was dark and requiring constant artificial illumination. PWD Delhi specified a polycarbonate vault to introduce natural daylight and reduce electrical load — in a high-traffic, high-vibration environment.

The solution

Coxwell Multicell 16 mm opal in vault profile across the underpass — 6,755 m² of diffuse, even daylight that eliminated supplementary lighting during daytime hours. The double-tooth interlocking system handles the vibration loading from traffic without joint movement or sealant failure.

Technical note

Multicell 16 mm, opal. Vault profile. UV co-extruded both sides. Installed to PWD Delhi specification. 2023.

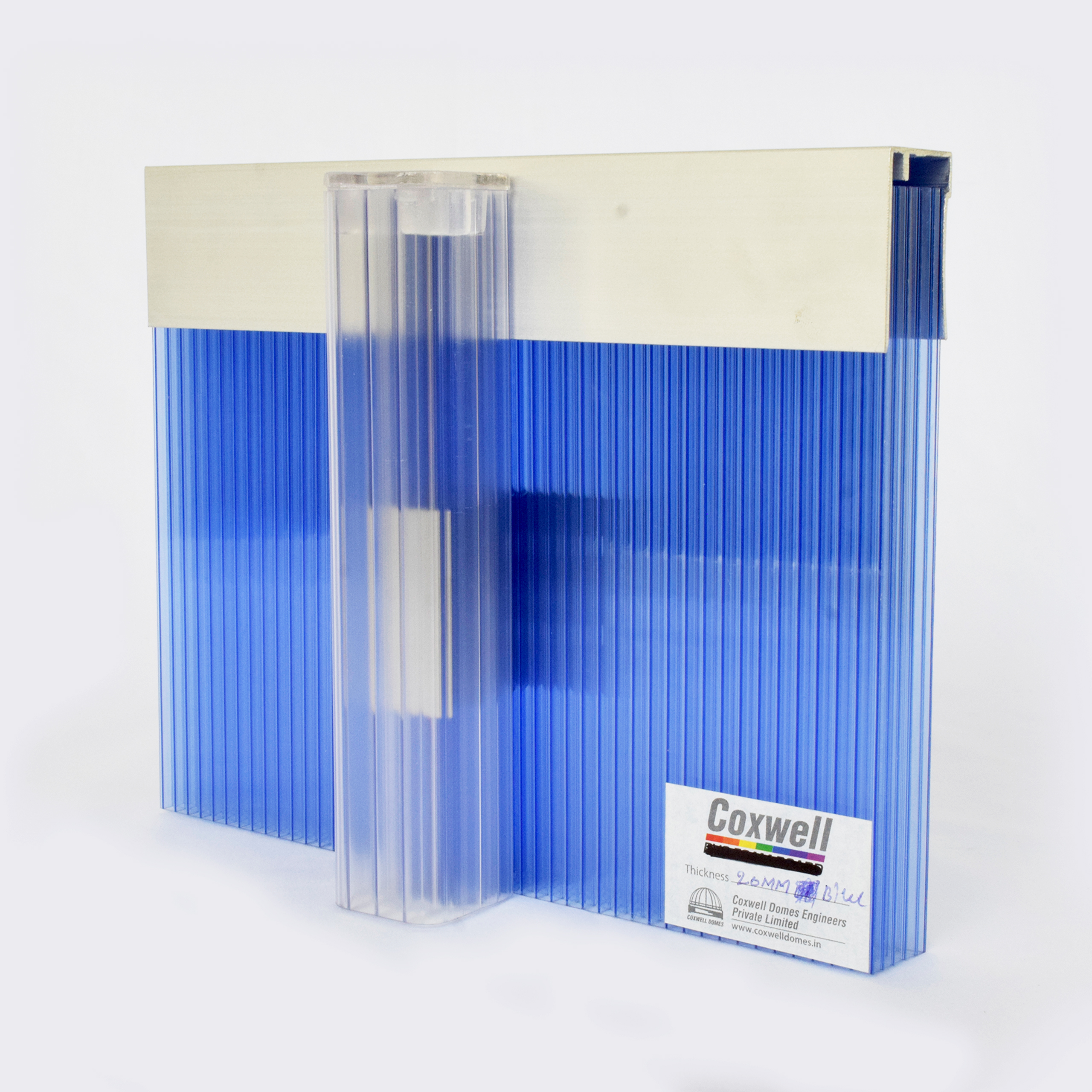

Product used

Multicell →

Multicell is not a generic polycarbonate sheet. It is a modular daylighting system — engineered for leak-proof performance over large spans, in Indian climate conditions, over decades.
