Innovative · Tri-colour louver fusion · NEW

Vivid.

Daylight-Directional Louver Technology™

Vivid — Tri-colour louver fusion · NEW

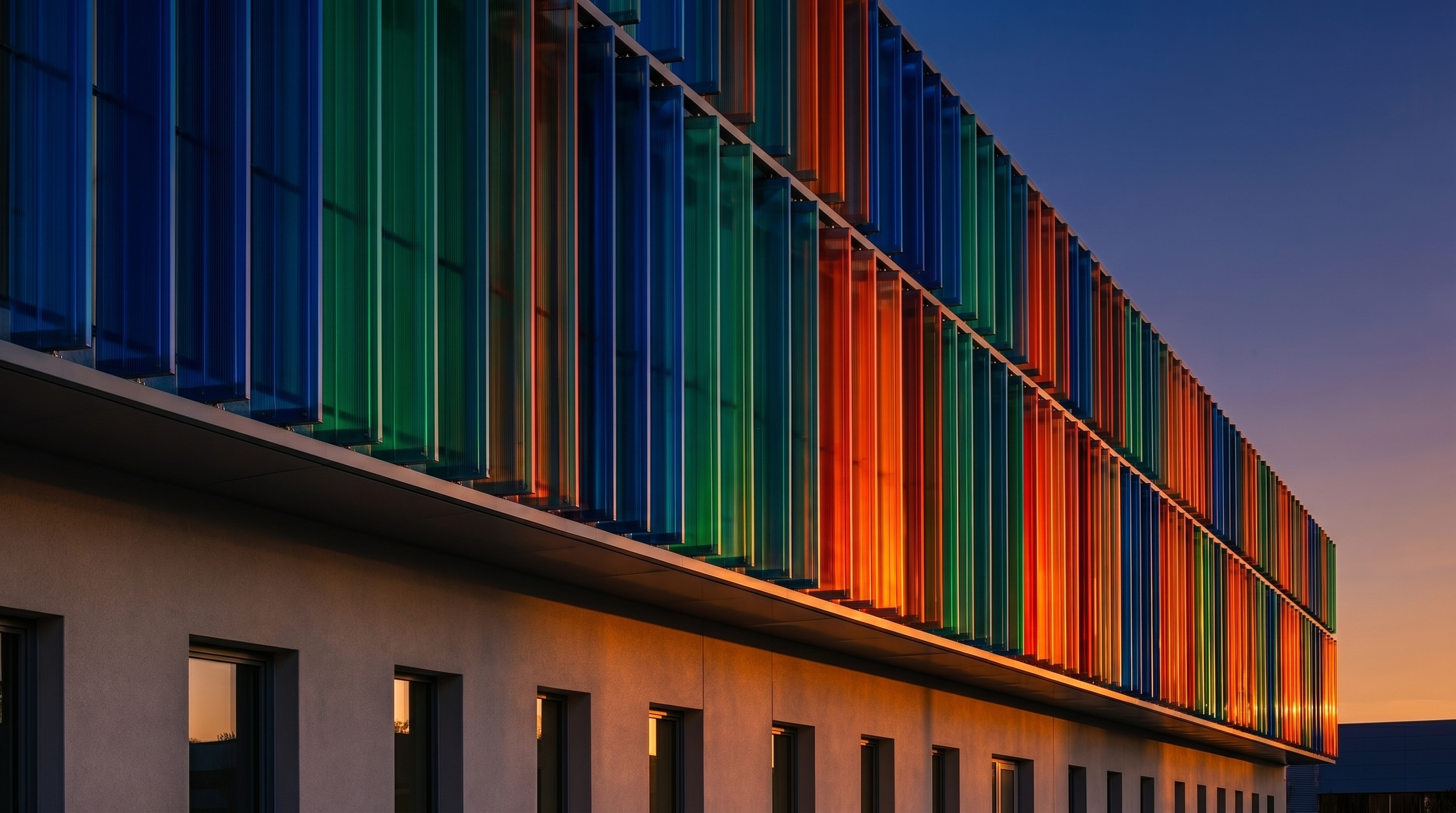

FIG. 01 · InstalledTri-colour louver fusion · NEW
01 · About

Vivid is the only polycarbonate panel that controls where daylight goes, not just how much comes through. Its precision micro-louver matrix directs light to where it is needed — and blocks it from where it is not.

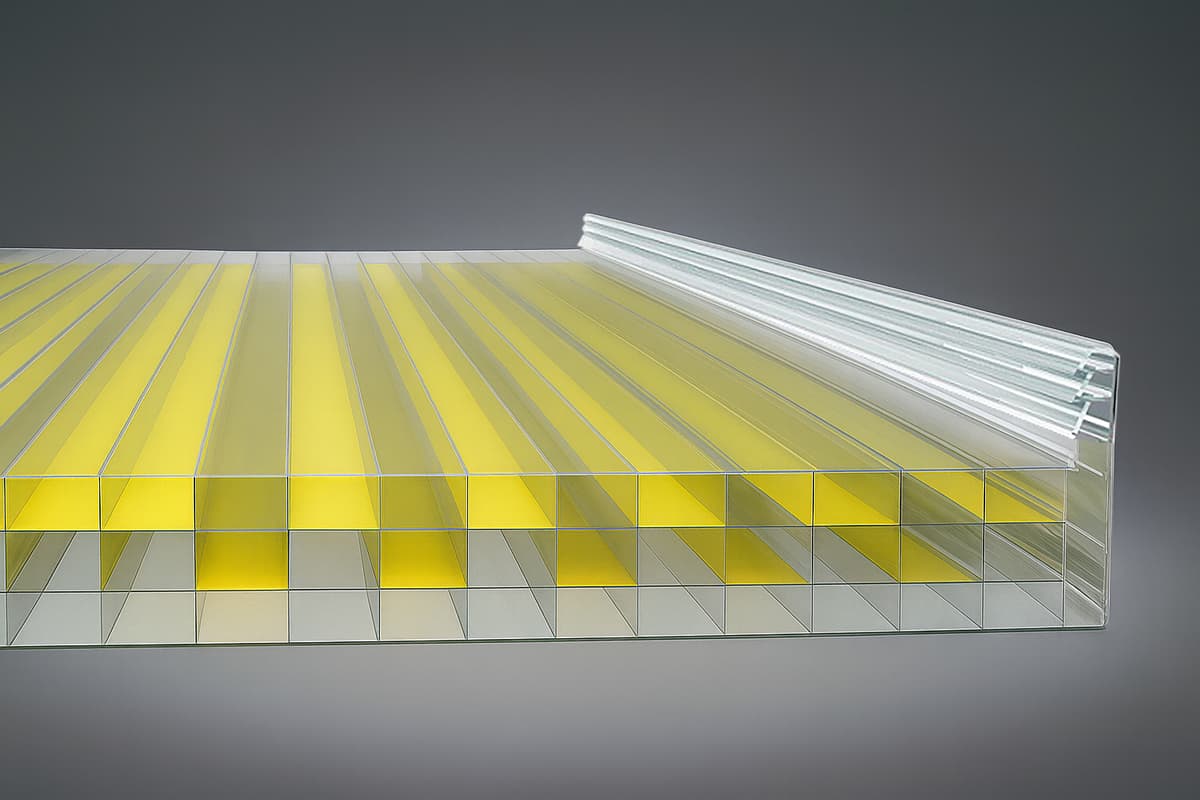

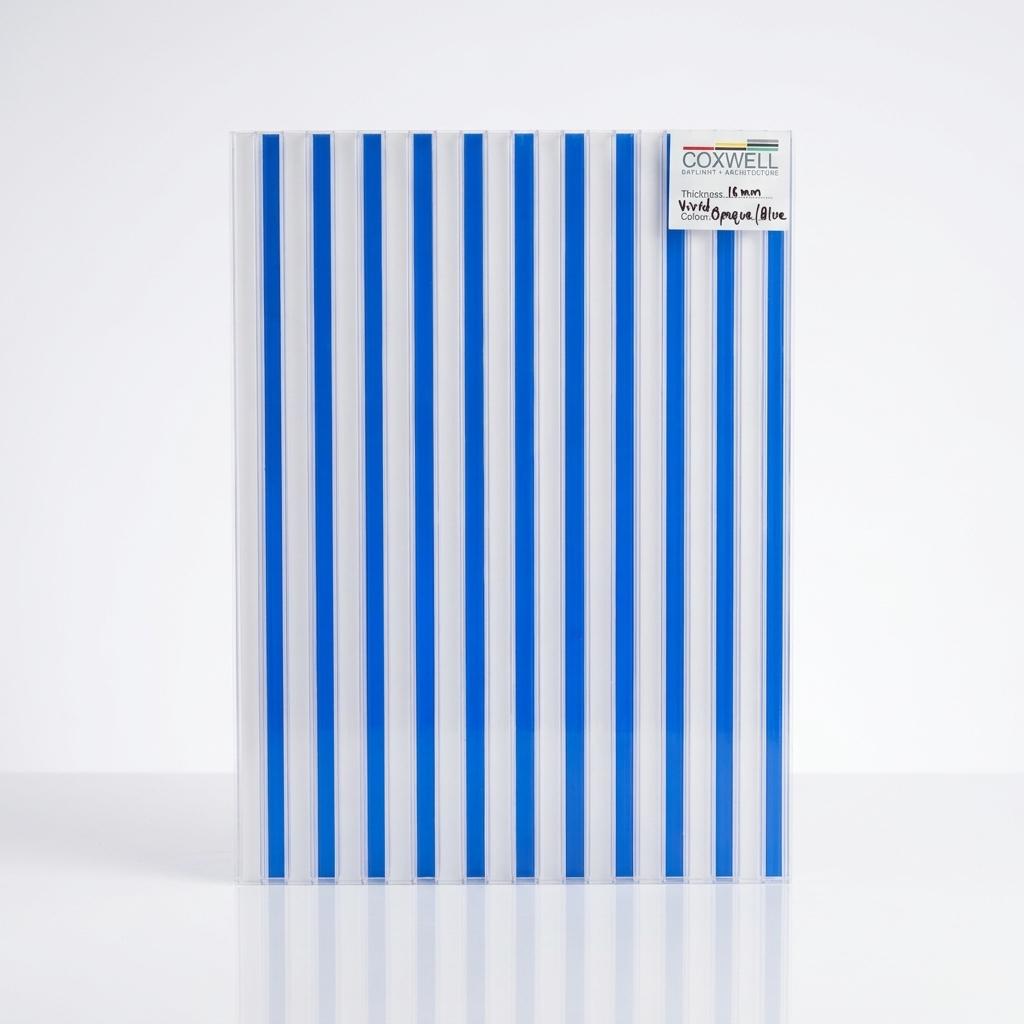

Coxwell Vivid panel
02 · Benefits

Why engineers specify Vivid.

Up to 25% energy saving

Vivid's micro-louver geometry redirects diffuse daylight deeper into a space, reducing dependence on artificial lighting. The same structure blocks direct solar gain, cutting HVAC load. Both savings, in one passive panel.

Architectural identity through material

Three colours fused in a single panel. The tri-colour fusion creates a dimensional visual effect that changes with viewing angle and time of day. No paint. No overlay. The panel is the finish.

Long-term colour stability

Colour is structural — embedded in the extrusion, not applied to the surface. UV co-extruded on both sides.

03 · Specifications

Technical data.

Thickness16 / 18 / 20 / 22 / 25 / 30 mm
Width900 mm
LengthUp to 12 m
U-Value< 2.0 W/m²K
UV protectionCo-extruded both sides
Fire documentationOn request
Weight~3.4 kg/m²
Warranty10 years against manufacturing defects, subject to standard terms
04 · Options

Finish & configuration.

Colour fusion

Dual-colour / Tri-colour (specify combination at order)

Antiglare

Matte underside available

Infrared

IR-blocking top layer available
