Natural light without changing the roofline.

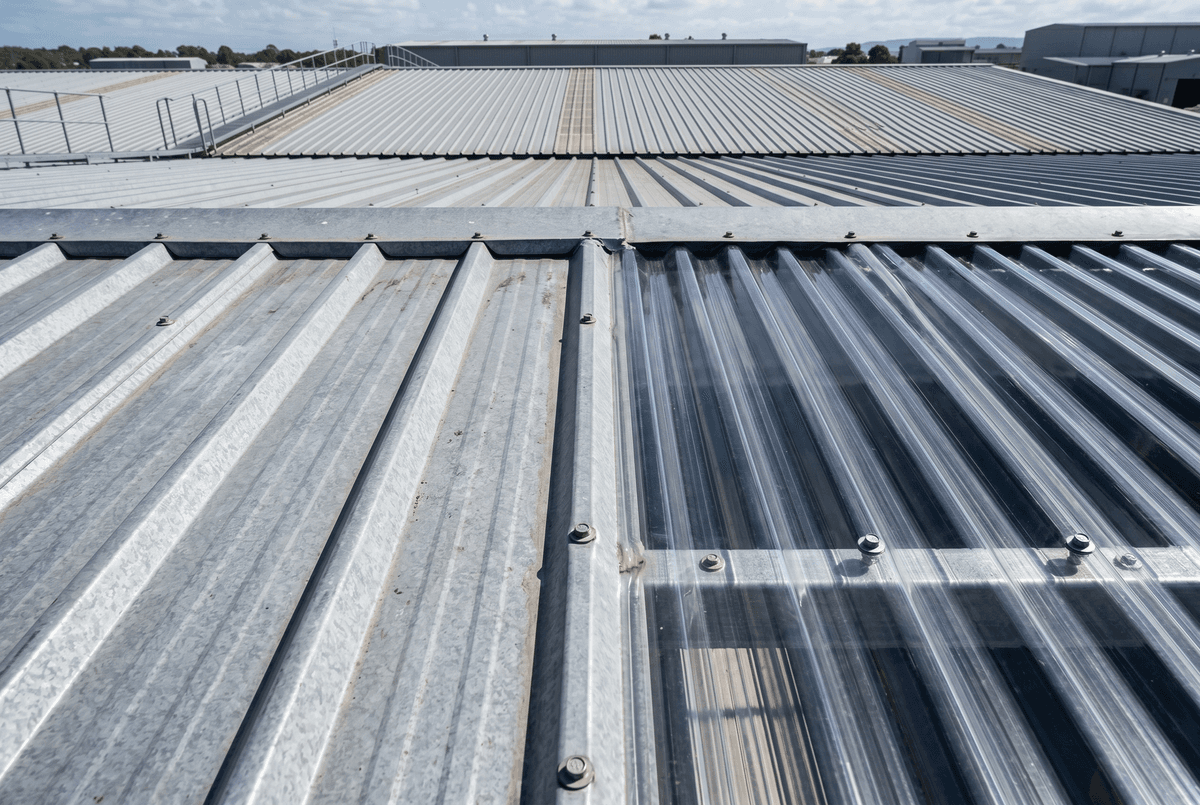

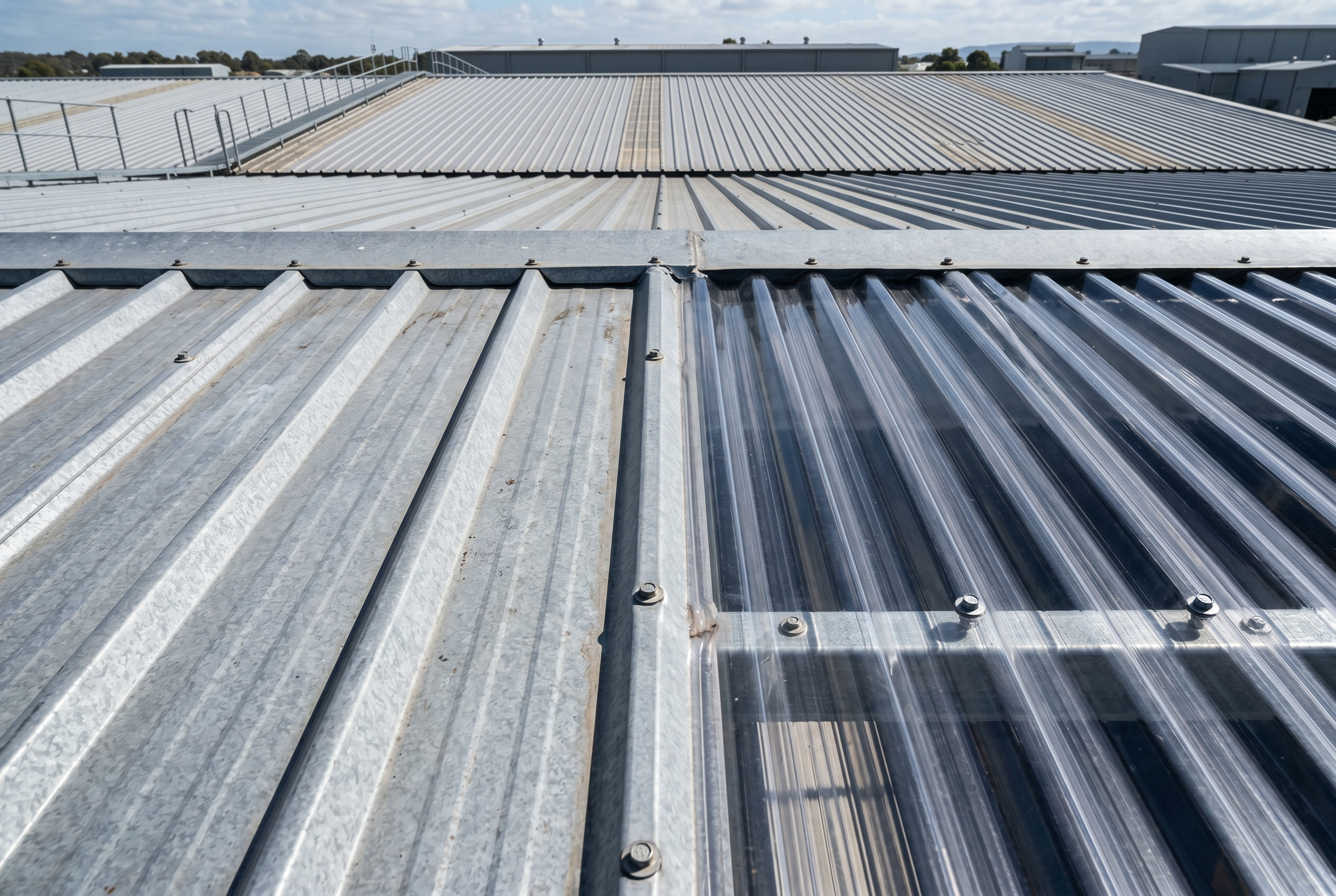

Corrugated polycarbonate sheets are profiled to match adjacent steel sheeting in PEB and industrial roofs. They sit in the same purlins, follow the same pitch, and let daylight through — with no secondary structure and no weather-proofing compromise.
Standard profiles. Custom matched on request.
All sheets carry co-extruded UV protection on the weather face — not a coating, not an add-on. Standard across every thickness and profile.
| Available profiles | 76/18 corrugated, 32/250 micro-rib, custom profile matching |
| Cover width | 900 mm – 1,050 mm (profile dependent) |
| Thickness | 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm |
| Standard lengths | Cut to order up to 6,000 mm |
| Light transmission | Up to 82% (0.8 mm clear) |
| UV protection | Co-extruded on weather face — standard on all sheets |
| Colours | Clear, opal, bronze, green, blue |
| Fire rating | Self-extinguishing (BS 476 Part 7) |
Don't see your profile?
Coxwell offers custom profile matching for non-standard corrugation patterns. Submit your profile drawing or dimensions below — we'll confirm whether we can match it and at what lead time.
Submit your profile →
Send us your profile. We'll match it.
Tell us your existing roof profile — by name, dimension, or by uploading a drawing or photo. We'll confirm the match, arrange a sample, and quote for your area.
Where corrugated PC is used.
Factories & warehouses
PEB structures
Agricultural sheds
Cold stores & logistics
Need a daylight system for an architectural project?
Coxwell's multiwall skylight and façade systems are engineered for architects. Wind-rated, thermally considered, and available with full project support.
Skylight systems →
