Specifications & certifications.

Everything an architect or engineer needs to specify a Coxwell system: tested values, certificates, CAD details, and installation guidance.

01 · Technical documentation

Technical documentation available on request.

Coxwell maintains product and system documentation for relevant performance areas such as UV exposure, impact resistance, yellowing, fire behaviour, quality management, environmental management, installation, and warranty. Exact documents depend on product family, thickness, colour, application, and project requirement.

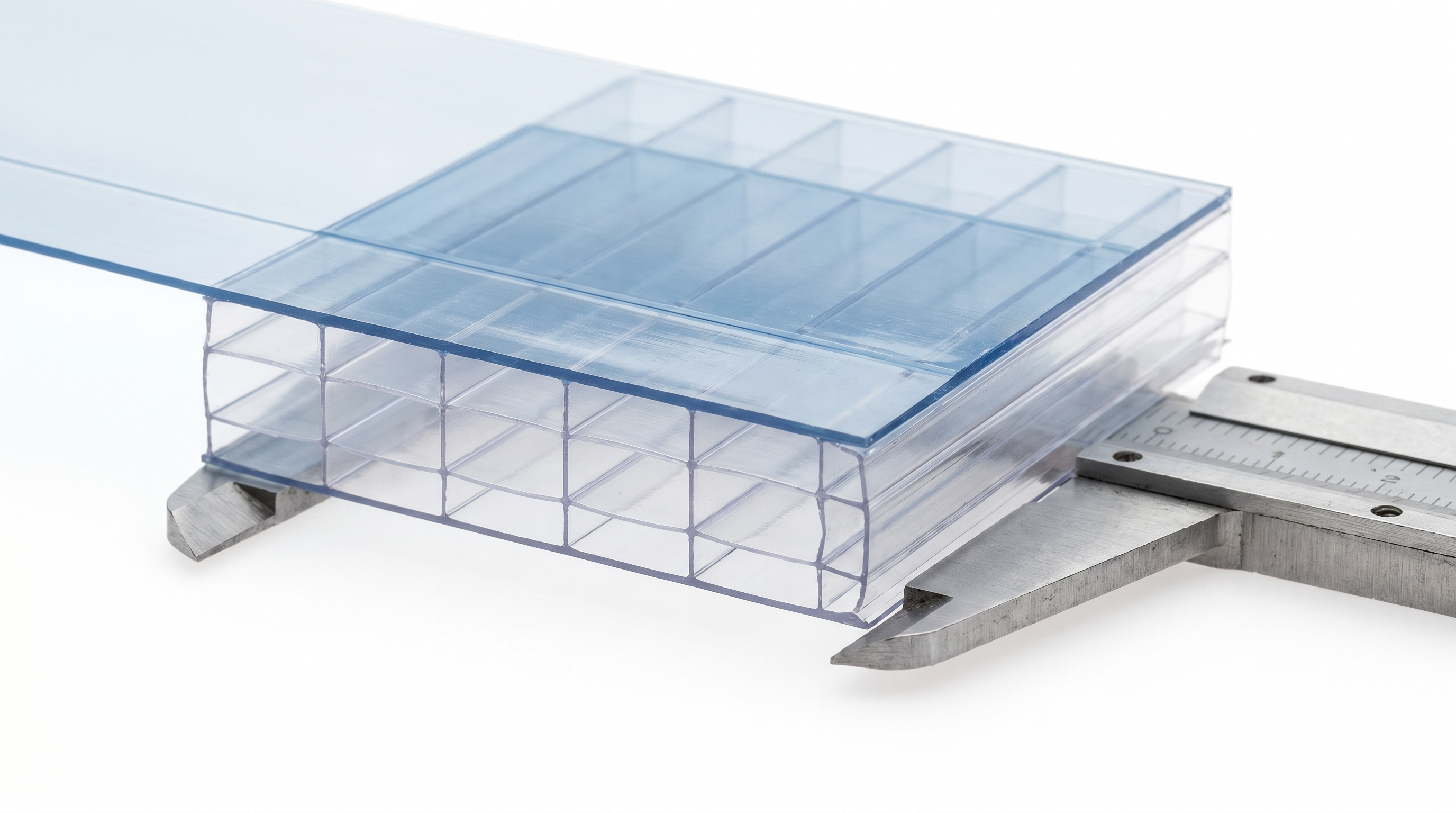

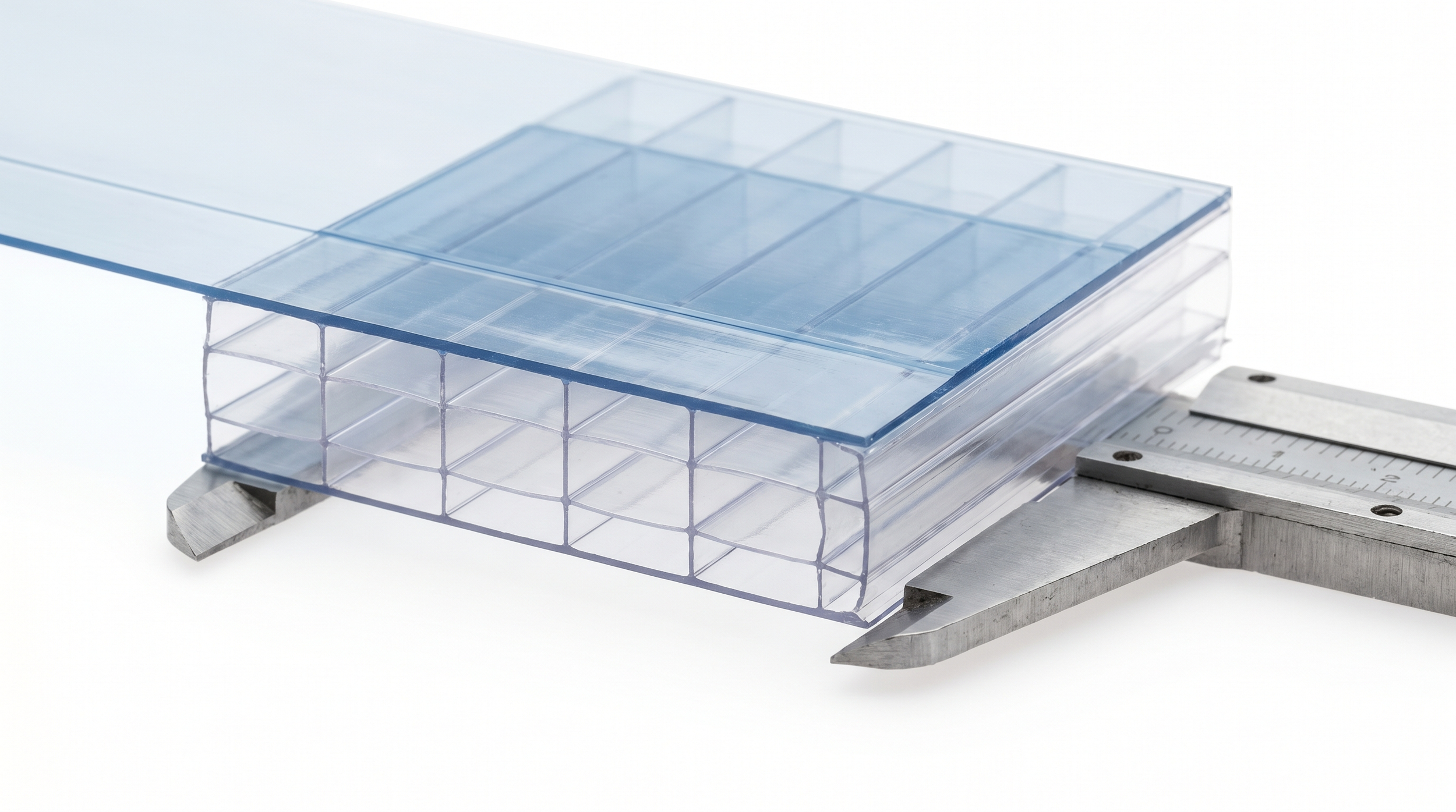

Coxwell polycarbonate panel technical certification and testing

01IS / Impact references

Applicable impact and material references can be shared after product and thickness confirmation.

02UV / Weathering

UV exposure and yellowing documentation, including ASTM G155 / ASTM E313 references where applicable, can be provided by the technical team.

03Fire behaviour

Fire-performance documentation is product-specific and may vary by thickness, colour, and grade. Coxwell will confirm the applicable report for the selected system on request.

04ISO management systems

Coxwell operates under ISO 9001 and ISO 14001 certified management systems. Certificate scope and validity can be shared on request.

05LEED support

Coxwell products can support green-building project documentation through daylighting, energy-performance, material, and environmental documentation where applicable.

02 · Performance

How Coxwell systems perform.

Headline values across the four product families. Detailed spec sheets are linked from each row.

SystemLightU‑valueWeightFire

PrismCustom dual/tri0.99 W/m²K3.6 kg/m²On request VividTri-colour fusionConfigurable3.4 kg/m²On request SnapwallClear / Opal0.99 W/m²K4.6 kg/m²On request Multicell60–80% diffuse1.7 W/m²K2.7 kg/m²On request X-Fix70% diffuse1.7 W/m²K2.7 kg/m²On request Static SheetUp to 89% clear5.4 W/m²K3.6 kg/m²On request SpryTwin-wall diffuse3.0 W/m²K1.5 kg/m²On request

03 · Documents

Need spec sheets, CAD files, or test certificates?

Tell us the product, application, thickness, and project requirement. Our team will share the relevant specification sheets, CAD details, warranty terms, installation guides, and applicable test documentation.

Request documents →

All documents are free. No signup required.
