Snapwall

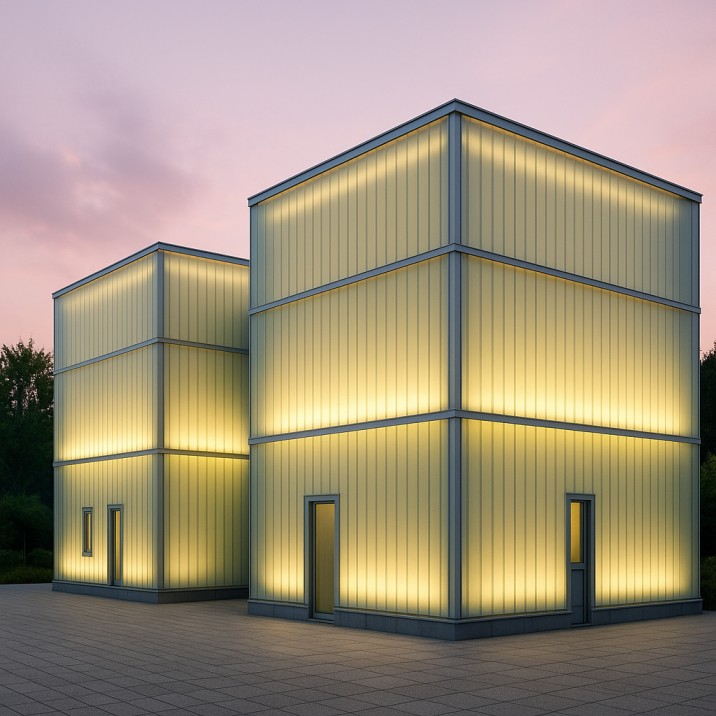

Snapwall features an innovative snap-on interlocking system that ensures quick installation, secure fit, and seamless appearance. Designed for modern architectural façades and roofing, it combines structural strength with sleek aesthetics. Its multi-layered build enhances durability, thermal insulation, and UV protection — making it ideal for both residential and commercial projects.

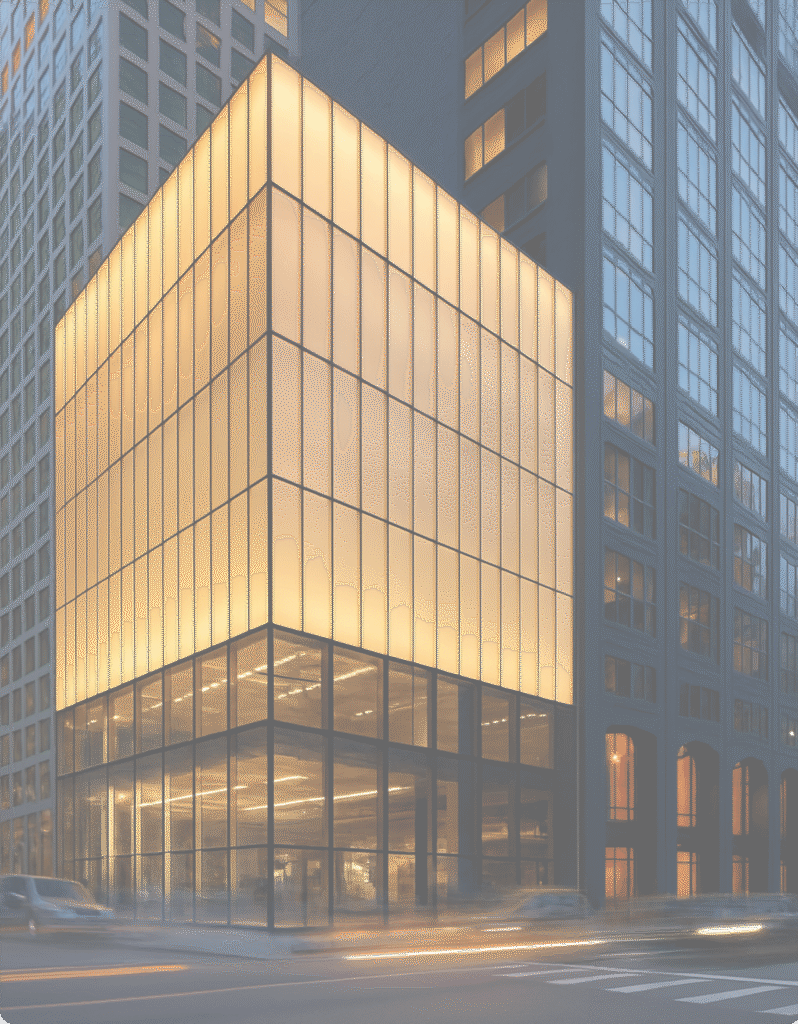

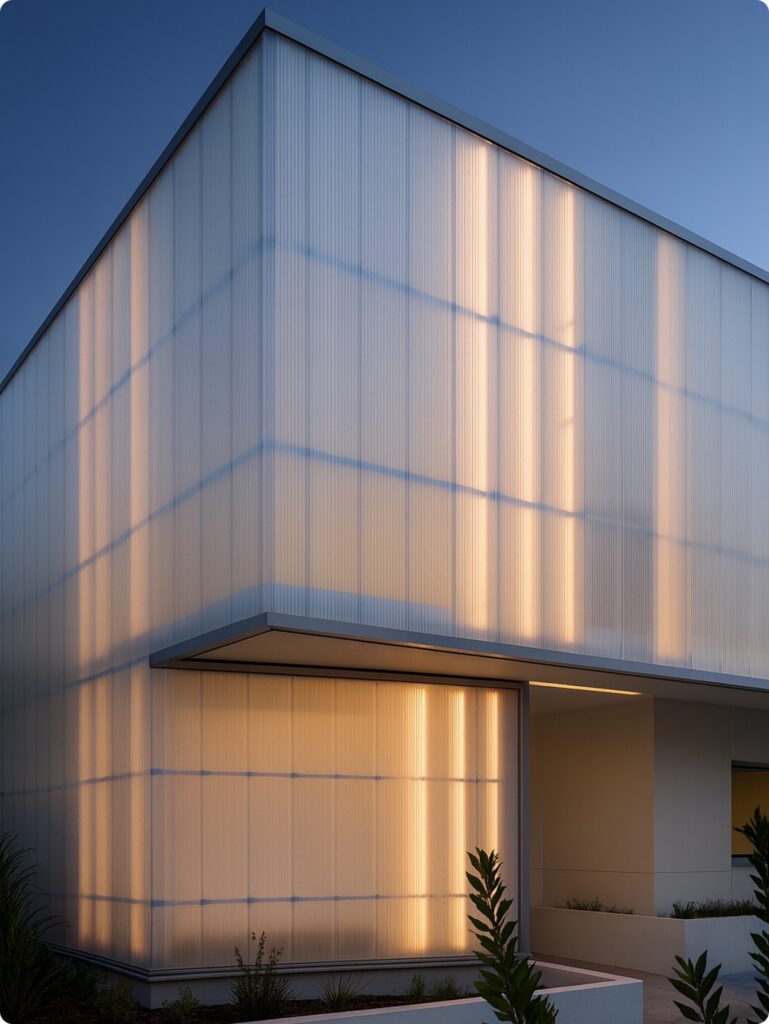

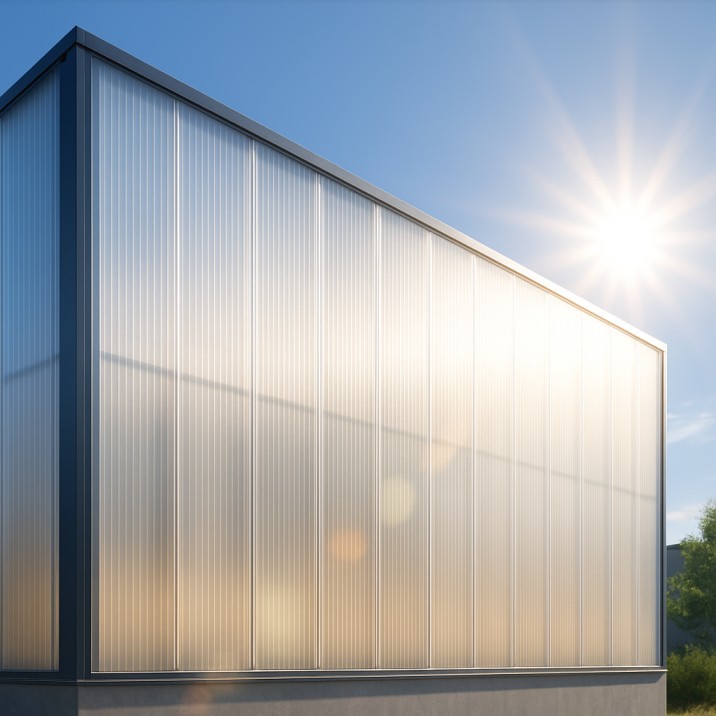

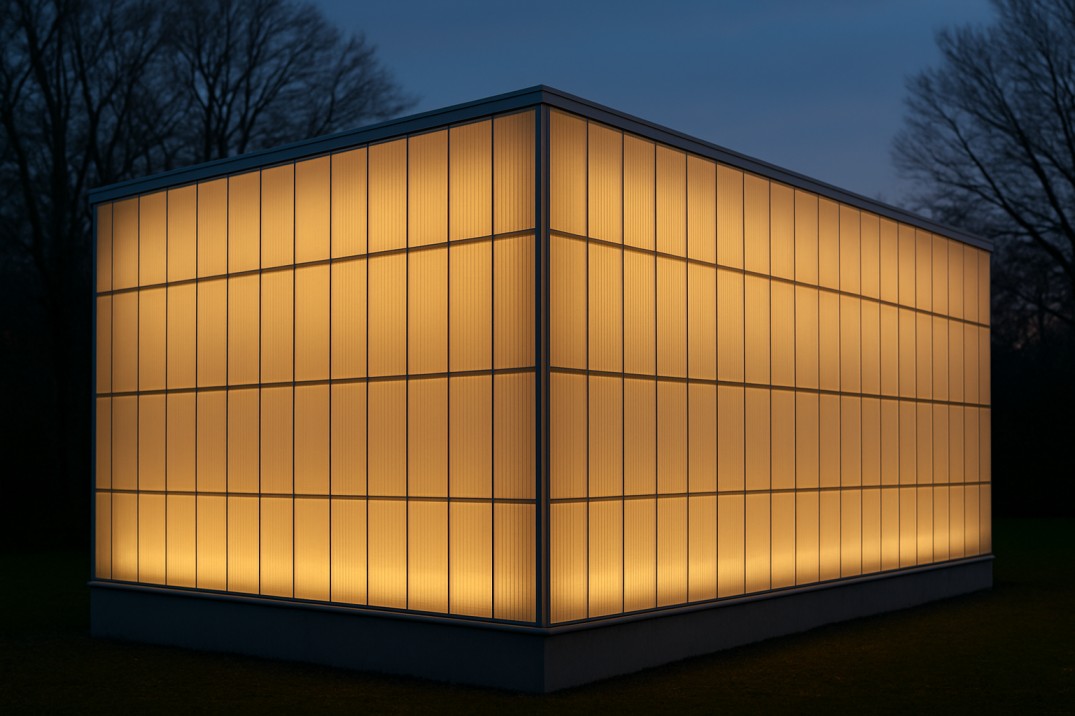

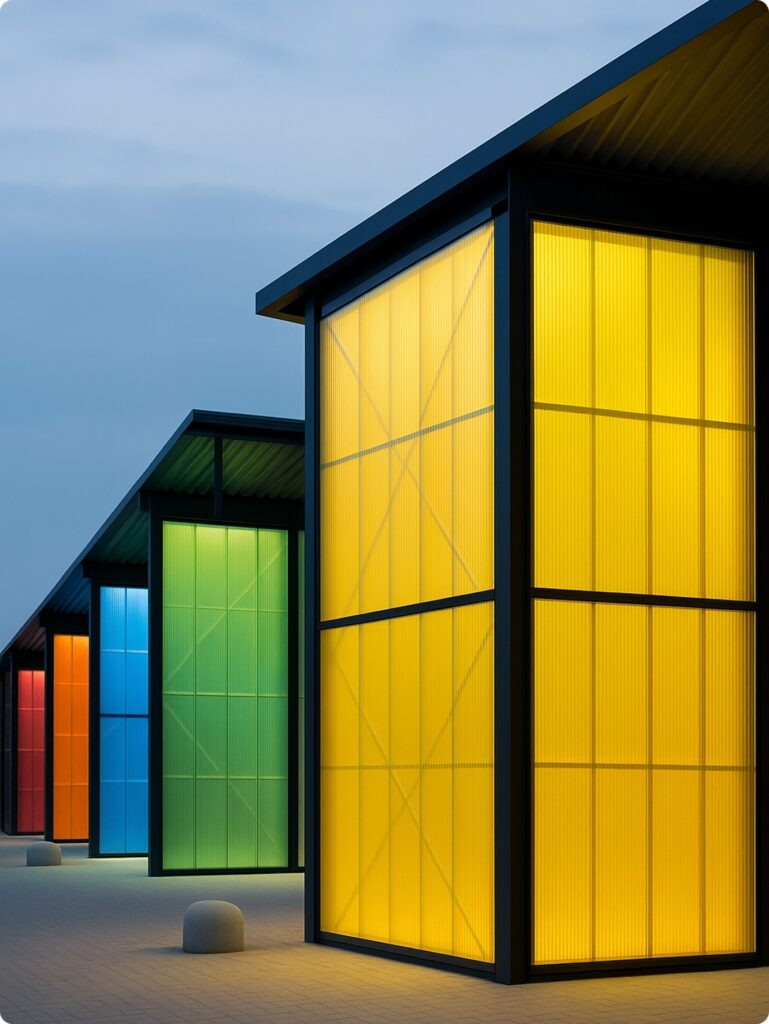

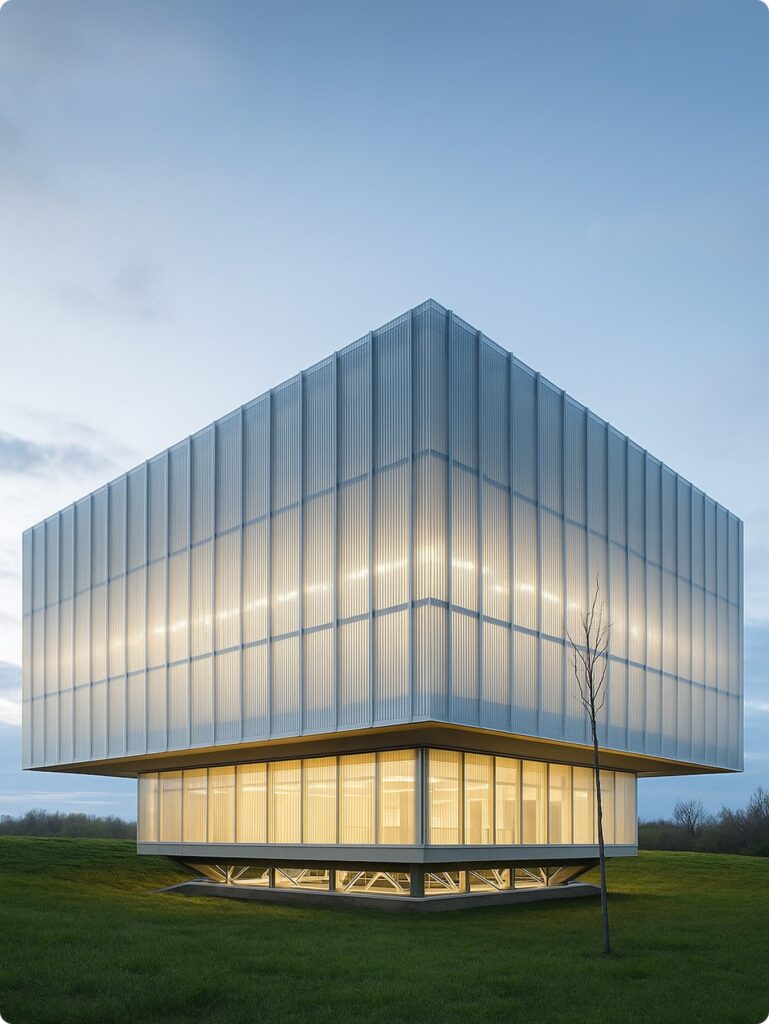

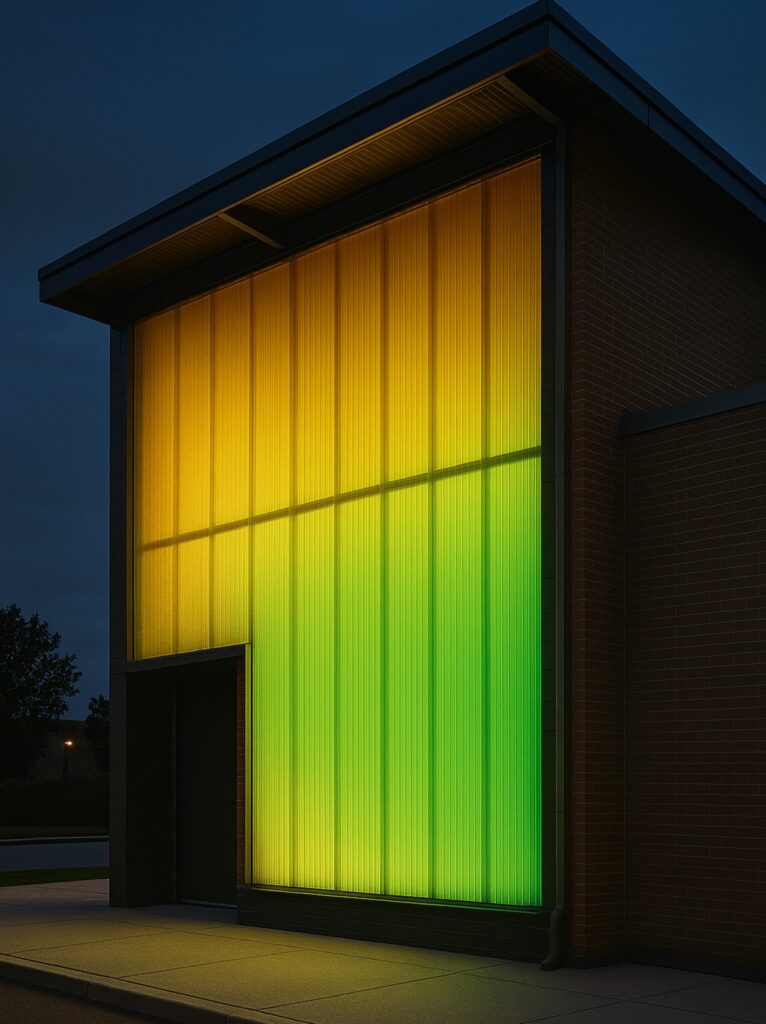

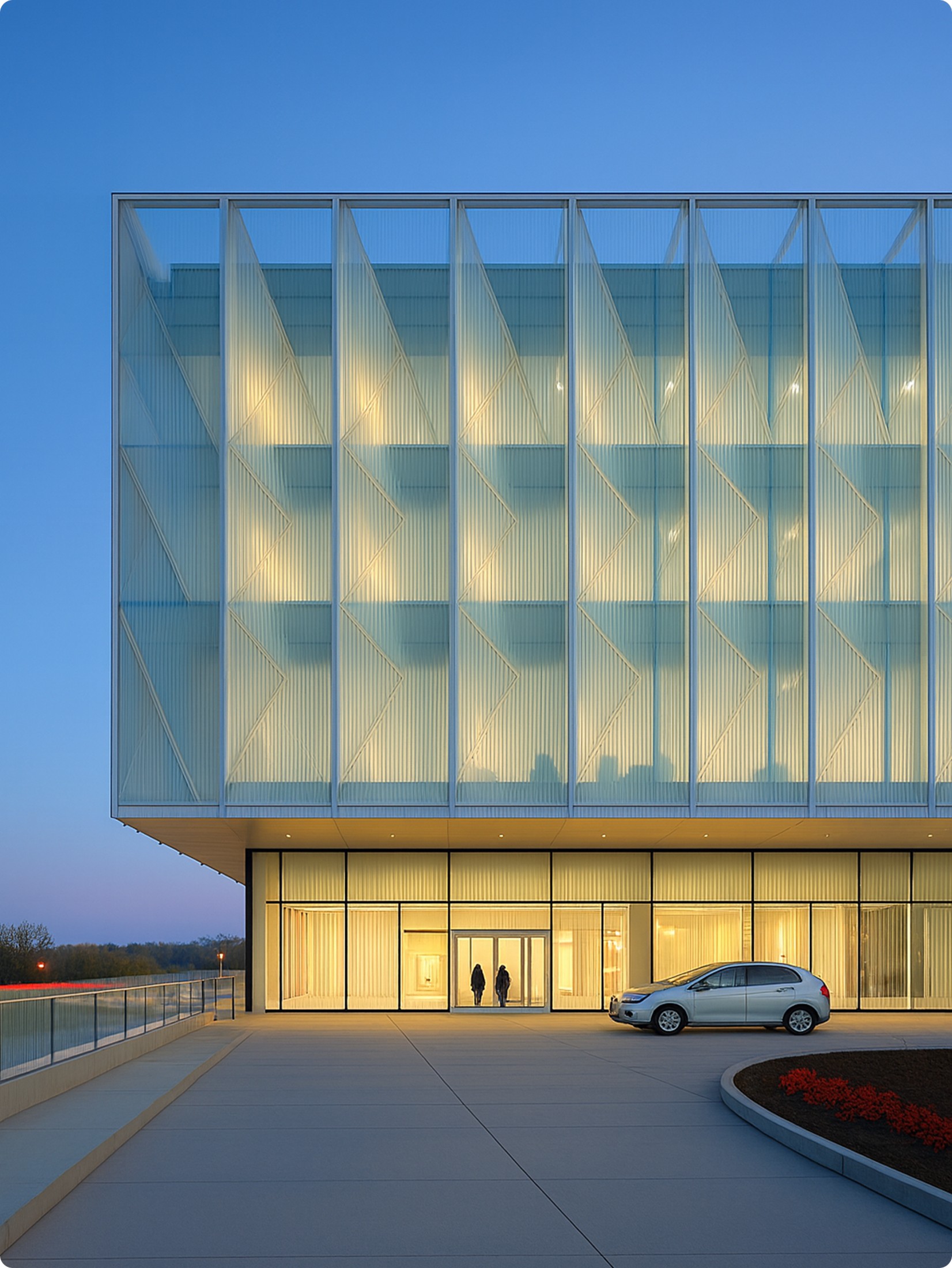

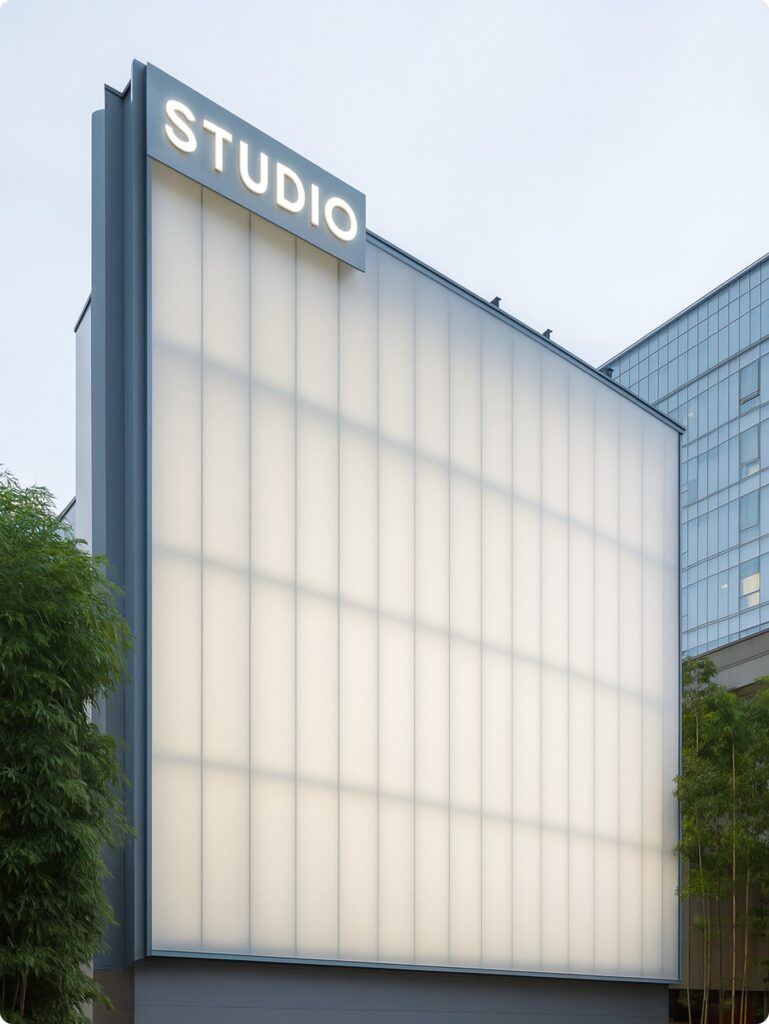

Snapwall is a revolutionary 40mm interlocking polycarbonate wall system for facades, partitions, and rain screens. Built with our proprietary Tertiary and Bi-Color Fusion technology, Snapwall lets you play with color in ways never seen before in architectural walls. Whether you’re designing a commercial façade, an interior partition, or a creative installation, Snapwall gives you the power of seamless color transitions, superb insulation, and unmatched ease of installation.
Snapwall’s 10-wall 40mm panels are precision-engineered to provide high impact resistance, acoustic comfort, and thermal insulation. The seamless interlock mechanism eliminates the need for glazing bars between panels, creating uninterrupted lines of color and light. It is available in two framing systems—SW10 (up to 6m) and SW90 (up to 12m)—to suit diverse project scales.
Snapwall is backed by a 10-year Coxwell warranty covering discoloration, UV degradation, and structural integrity. Our proprietary co-extrusion technology and dual UV layer offer superior resistance to fading, even in India’s toughest weather conditions.
- Thickness: 40mmÂ
- Structure: 10-wall polycarbonate panelÂ
- Panel Width: 500mmÂ
- Length: Up to 12 metersÂ
- UV Protection: Double-sided, 50 micronÂ
- Light Transmission: Moderate to high (based on color)Â
- Fire Rating: Excellent fire resistance (does not catch fire, melts at 400°C)Â
- Acoustic Insulation: Up to 22 dB sound reductionÂ
- Framing Systems: SW10 (for heights up to 6m), SW90 (for heights up to 12m)Â
Advantages of Snapwall Panel System
Unlocking opportunities, maximizing potential, and paving the way to success.
01
3-in-1 Color Innovation
02
Seamless Finish
03
Energy Efficient
04
Sound Insulation
05
Simple Click & Fix
06
Durability You Can Trust
Snapwall Product Variants
Snapwall Product Variants
Coxwell Snapwall™ offers a smart modular panel system designed for sleek façades and high-performance roofing. Available in 10mm and 16mm thickness options, it features a snap-on interlocking mechanism that ensures fast installation with a clean, seamless finish. Snapwall panels come in standard sizes of 2 ft x 10 ft, 2 ft x 12 ft, and 2 ft x 16 ft, with custom lengths available on request — making it ideal for both residential and commercial applications where design precision meets structural efficiency.
Thickness
Structure
Panel Width
Length
Color Options
Fire Retardant
UV Protection
Acoustic Rating
U-Value
Installation
General Properties of Snapwall with
Customisation Options
Unlock the power of customization with Multicell: harnessing its general properties to create tailored solutions.
Quick Installation
Structural Strength
UV & Weather Resistance
Clean Aesthetic Finish
General Properties of Snapwall with
Seamless Integration
Unlock design flexibility with Snapwall: combining structural performance and sleek aesthetics to deliver smart architectural solutions.
Quick Installation

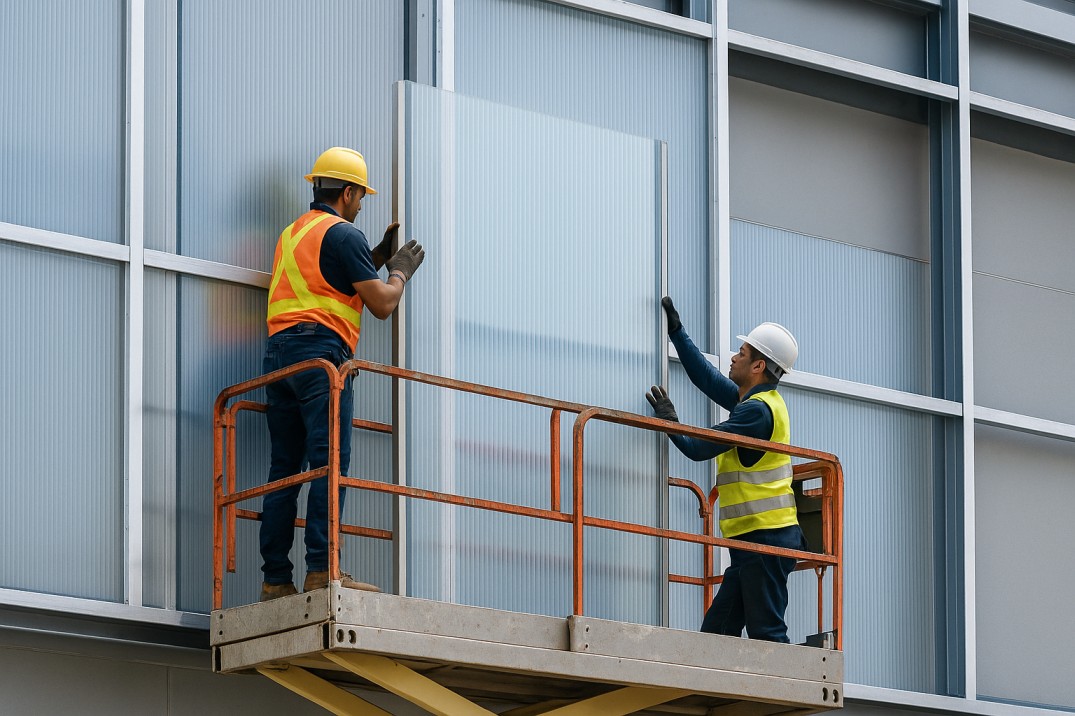

Snap-on interlocking system enables fast, secure, and tool-free assembly.
Structural Strength
Engineered to enhance rigidity and wind resistance across wide spans.
UV & Weather Resistance
Provides long-lasting protection against UV rays and harsh climates.
Clean Aesthetic Finish

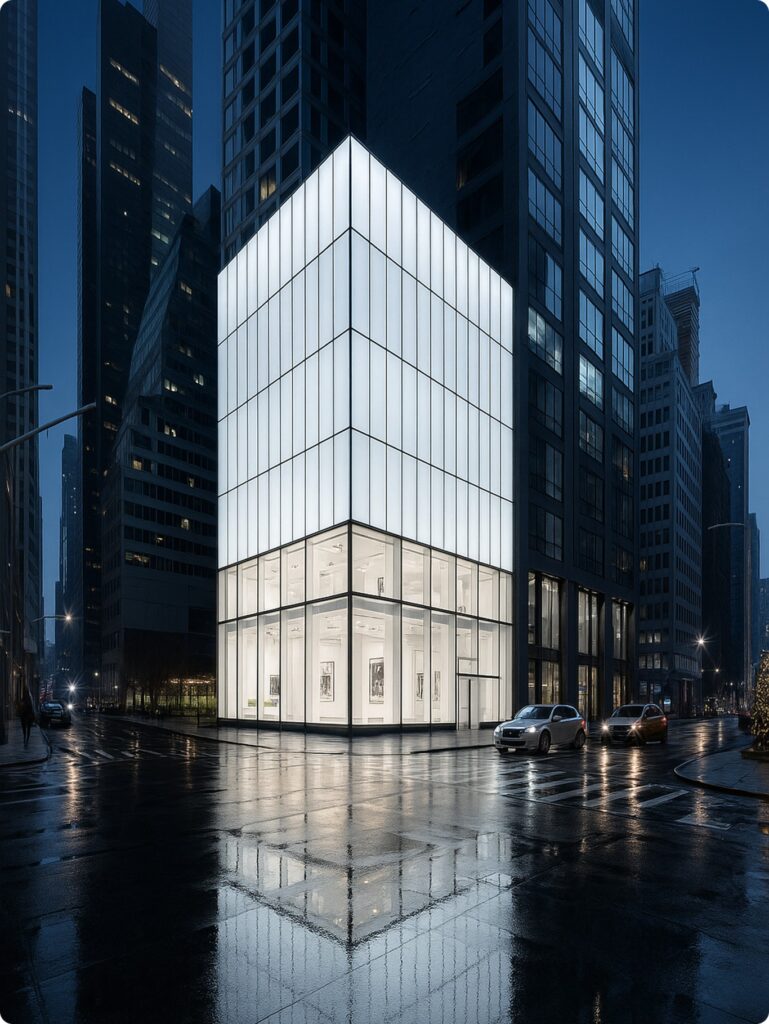

Delivers a flush, modern façade with concealed fasteners and seamless joints.
